Original Xhorse VVDI MB BGA Tool Benz Key Programmer

Original Xhorse VVDI MB BGA Tool Benz Key Programmer

Now support all key lost : w204, w207,W166, W246, W212, W212(old),some W216, W164 2009- future will add more

Xhorse VVDI MB BGA TOOL Functions

1.support BE key,read password and prepare new key via IR.
2.NEC V051,V057 support on board get password
3.All NEC keys support on board write and erase
4.password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5.support renew EIS and ELV
6.support write EIS and ELV
7.support online generate key file
8.unlock ELV function will be released soon.
9.Renew other control modules function will support soon

Attention:

1.
Only when calculate the password, VVDI MB needs 1 token (for all key lost, needs 2 tokens).
2. If you offer us serial number of CONDOR XC-MINI or CONDOR XC-007(already stops producing), you can buy VVDI MB in 1150 USD and your VVDI MB will has 1 free token per day.  Pls add skype: VVDIfactory.com or Email: [email protected]
3.
If you buy CONDOR XC-002(in stocks), your VVDI MB can has 1 free token everyday.  If you have both condor XC-mini and XC002, your VVDI MB can has 2 free tokens per day
4. You can buy 5 tokens = 175 USD


Update History:


Latest version V2.1.7(2017-01-07)
V2.1.7 Download Link

password: 123456

 Require firmware V2.1.7
************************************************************************

===== BENZ V2.1.7   =====
1. Attention: All user update device to firmware v2.1.7, software v2.1.7
2. User manual v1.7 released, overview v1.7 released
3. BGA password calculation: bugfix for lost all key W216, W164 2009-
4. Exchange W204 ESL withou renew EIS. In ESL Tools, write EIS with password(Select Auto clear TP and personalized)
5. Activate key: Change key status from unuse to used
6. Bugfix for read v57 version password from key with NEC key adaptor
7. Bugfix

Latest version V2.1.6(2017-01-07)

Require firmware V2.1.6
***************************** *
===== BENZ V2.1.6 =====
1. Attention: All user update device to firmware v2.1.6, software v2.1.6
2. User manual v1.7 released, overview v1.7 released
3. BGA password calculation: Add support for lost all key W216, W164 2009-
4. Exchange W204 ESL withou renew EIS. In ESL Tools, write EIS with password(Select Auto clear TP and personalized)
5. Activate key: Change key status from unuse to used
6. Bugfix for read v57 version password from key with NEC key adaptor
7. Bugfix

Latest version V2.1.5(2016-12-19)
V2.1.5 Download Link

2016-12-19
*** Require firmware V2.1.5
************************************************************************
===== BENZ V2.1.5   =====
1. Attention: All user update device to firmware v2.1.5, software v2.1.5
2. Support read old type w209, w211 password via IR directly
3. Support activate blnak BGA key(0CF4)
4. Bugfix for data acquisition in some old key version
5. Language bugfix

V2.1.4 (2016-09-12)

Require firmware V2.1.4

1. Attention: All user update device to firmware v2.1.4, software v2.1.4
2. Support get password from w204, w207 EIS while lost all key

Latest version V2.1.3 (2016-09-07)

1. Attention: All user update device to firmware v2.1.2, software v2.1.3
2. Fix bug for time out when get erase password or key file



Latest version V2.1.2 (2016-09-02)

1. Attention: All user update device to firmware v2.1.2, software v2.1.2
2. User manual v1.6 released, overview v1.6 released
3. Support Repair KM: Menu->Special Function->KM Repair, support w204, w207, w212, w211, w166, w246, w231, w205
4. Support read/write gateway: Menu->Special Function->Read/Write CGW(ZGW)
5. Support Read/Activate blank BGA key(0CF4): Read Write Key->Read blank BGA(0CF4) EIS data
6. Support read current HASH in key(Repair key): Read Write Key->Key current HASH (Repair key)
7. Support unlock key track: EIS Tools->IR->Enable Key
8. Support another type (Continental)ISM read/write/erase
9. Bugfix

version V2.1.1 (2016-07-5)

1. Attention: All user update device to firmware v2.1.1, software v2.1.1
2. Add connection diagram for new NEC key adaptor
3. Support repair W204 ESL fatal error and repair old motorola ELV. you need buy an extra adaptor for ESL
4. Bugfix

 version V2.1.0 (2016-05-31)

1. Fixbug for write original NEC key via IR
2. Fixbug for show finish error information in IR read password

V2.0.9 ( 2016-05-29)

1. Attention: All user update device to firmware v2.0.9, software v2.0.9
2. User manual v1.5 released, overview v1.5 released
3. Support new sprinter W906 motorola EEPROM dump prepare key file
4. Support read password via IR for old motorola EIS (HC05, HC08, K-Line)
5. Support W204 ESL Emulator: only support VVDI W204 emulator, you must renew it before use
6. Support OBD read W164, W211, W209, W169 EIS without gateway, you need buy an extra adaptor
7. Fixbug for make only 1 key file in motorola EEPROM dump
8. Fixbug for read v51 version password from key
9. After read password from v51, v57 key, will fix the key automatically
10. Bugfix

 V2.0.8 (2016-04-07)

Require firmware V2.0.8
1. Attention: All user update device to firmware v2.0.8, software v2.0.8
2. User manual v1.3 released, overview v1.4 released
3. Add support renew/write NEC keys, keyless keys on board. Attention: New NEC adaptor is option component, Purchase from dealer
4. Fix bug in prepare key file for some B200 (W169) make key file
5. Fix bug in passwod calculation for some W216
6. Add support write renewed NEC keys, blank BGA keys etc
7. Bugfix

V2.0.7 (2016-02-29)

Require firmware V2.0.7
1. Attention: All user update device to firmware v2.0.7, software v2.0.7, the lower version don't support password calculation
2. User manual v1.2 released, overview v1.3 released
3. Add support for renew ECU/Gearbox/ISM etc
4. Fix diable key in K-Line protocol
5. Fix clear TP in K-Line protocol
6. Fix read key bug in password calculation
7. Bugfix

V2.0.6 (2016-01-18)

1. Attention: All user update device to firmware v2.0.6, software v2.0.6, the lower version dont support password calculation
2. User manual v1.1 released, overview v1.2 released
3. Add support for disable key
4. Fix bug for test W164, W221 EIS status
5. Fix bug for write EIS data
6. Bugfix

V2.0.5 (2016-01-07)

1. Attention: All user update device to firmware v2.0.5, software v2.0.5, the lower version dont support password calculation
2. Add password calculation for lost all key. Support W166, W246, W212, W212(old). After success find password, it will need pay 2 calculation times
3. Password calculation with working key support: add working key test before data acquisition
4. Add EIS status test, working key test function
5. Fix bug for OBD read W203, W639, W463(K) EIS
6. Autodetect W212 EIS with ELV
7. Fix bug for read v51 key password via NEC adaptor
8. Add IR repair key function
9. Bugfix

V2.0.3 (2015-12-14)


Require firmware V2.0.0

Password Calculation: Read EIS under OBD mode will check car power automatically. Avoid lost data in EIS


Support Key Types Display:


vvdi-mb-bga-tool

Latest Technical details :

Note: VVDI MB BGA tool update goes well, the following workable models are for reference only.

Model support IR/OBD:
W164, W164 2009+
A166, W197,W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906

Keys version supported:
v03, v06, v08
v05, v07, v09
v59,v61


FAQ

Q: suport all key lost?
A: Support all key lost : w204, w207,W166, W246, W212, W212(old)


Q: I test read data with obd2 210 k line working and 204 car read with obd 2 ,but 211 not read with obd2 cable connect

16 12v

4+5 GND

14 CAN_L

6 CAN_H

pin 1 : ESL 1

pin 2 : GND

pin 3 : +12V (30)

pin 5 : CAN L (White)

pin 6 : CAN H (Green)

pin 7 : CAN L

pin 8 : CAN H

Can any one test?

A:Read eis via obd for W164, W169, W211, W209, require gateway connected


Q: I bought EIS W221 lock with a key from the lock from one machine. I have read the PSW. I will make a complete loss of W221 key in the future?
Describe step by step procedure

A: you have uesd/2nd-hand EIS with working key,you can do like this for W221 all key lost
1.read all key lost EIS data-> save EIS data
2.read used EIS data enter password,get erase password->renew used EIS.
3.load step1 EIS data to renewed EIS with password->write EIS data
4.load EIS data(with key password)->prepare key file
5.input new key to device IR reader->load key file->write
6.insert new key to EIS->EIS will learn the new key->key learn success

by the way,if your all key lost W221 is motorola EIS,not need to change EIS,remove eis get eeprom by programmer(VVDI PROG).
then load eeprom to VVDI MB TOOL prepare key file.


Q: I have a w204 All key lost and i program a new EIS with VVDI, the ignition doesn't come on or crank, but the steering can lock and unlock. can someone guide me what to do?

A: about W204 all key lost(change new EIS),refer to following steps,maybe helpful:
1.Read EIS data via obd,then Save EIS data
2.adapt ESL:Read ESL data->Get Erase Password->Renew ESL
3.Change new EIS, Load EIS data(step1)->write Key Password(enter manually and at random)->Write EIS data
4.Personalize W204 ESL
5.Load EIS data(with Key Password)->Prepare Key File
6.Input new Key to device IR reader->Load Key file->write
7.Insert new Key to EIS->EIS will learn the new key->key learn success

Package List:

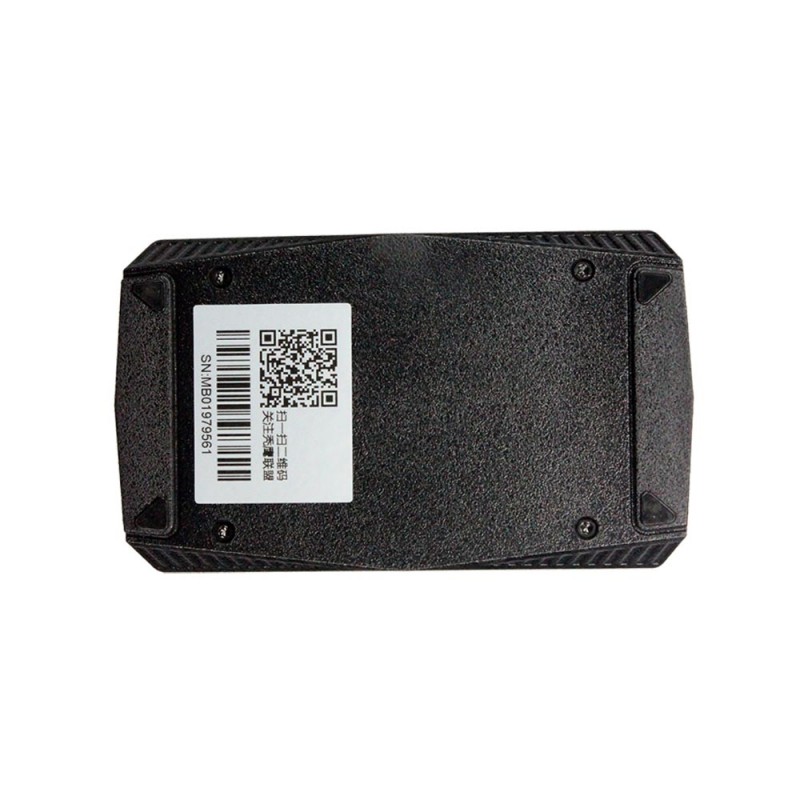

1. VVDI-MB TOOL device

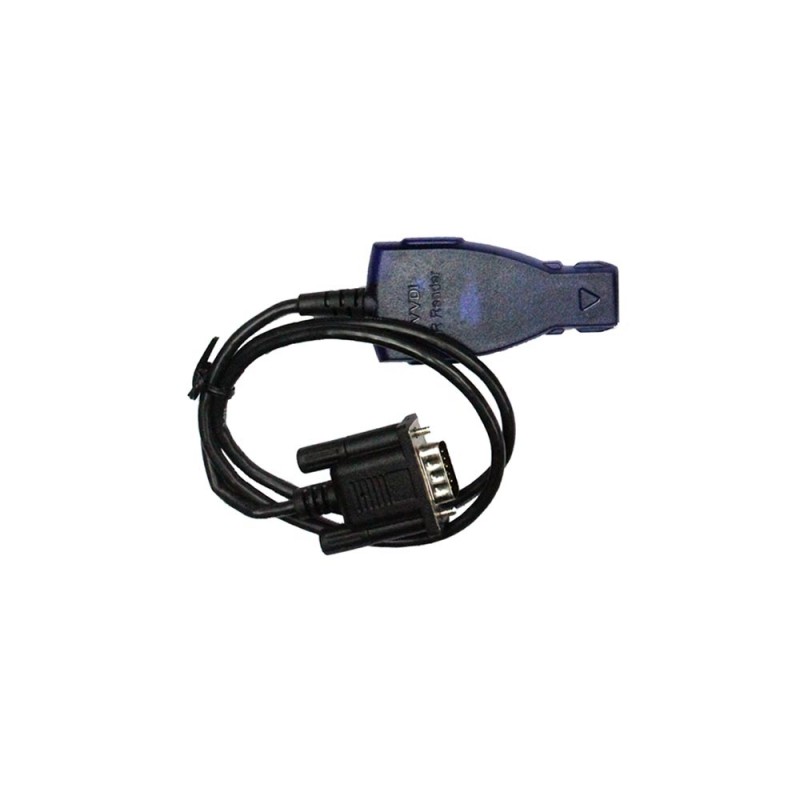

2. IR adaptor
3. USB cable
4. NEC adaptor 1
5. NEC adaptor 2

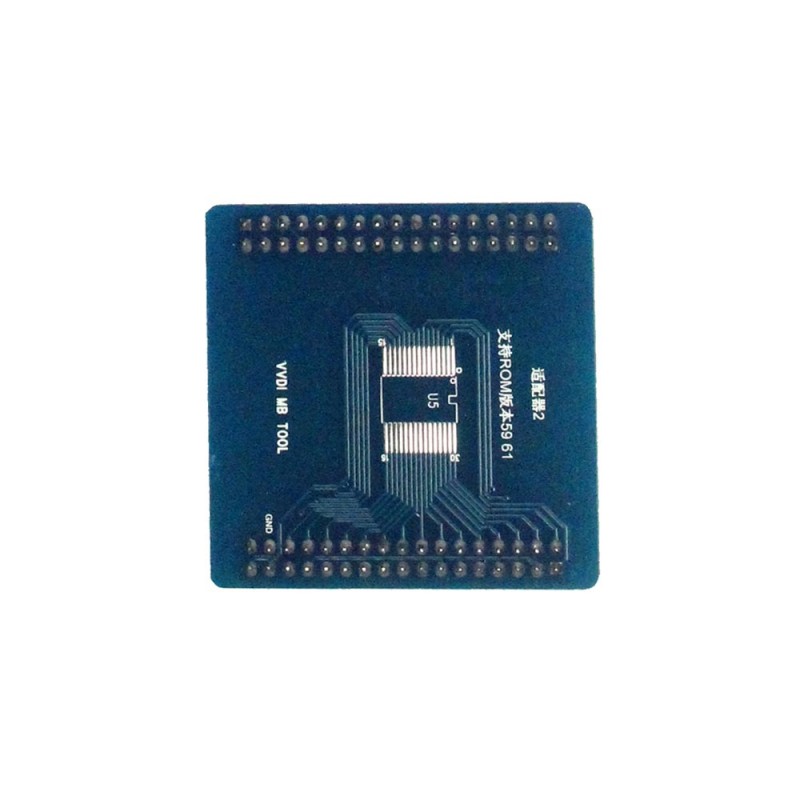

6. NEC adaptor base PCB
7. K Line in OBD line

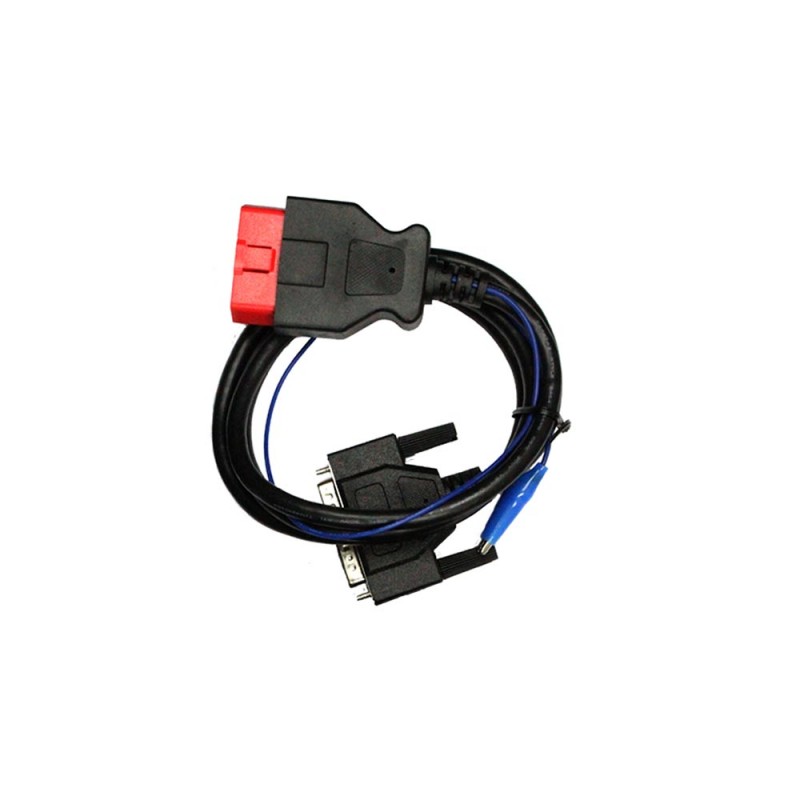

8. OBD line

Feedback from customer:

I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 - MCU ??? -read PSW IR - not successful
W210: EIS/EZS A210.545.02.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.03.08 - MCU 1D69J - read PSW IR - not successful
W210: EIS/EZS A210.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.00.08 - MCU 0D69J - read PSW IR - not successful
W215: EIS/EZS A215.545.08.08 - MCU 1L85D - read PSW IR - not successful
W203: EIS/EZS A203.545.05.08 - MCU ??? - read PSW IR - OK
W203: EIS/EZS A203.545.05.08 - MCU 1J35D - read PSW - OK
W203: EIS/EZS A209.545.09.08 - MCU 1L85D - read PSW IR - not successful
W220: EIS/EZS A215.545.02.08 - MCU ??? - read PSW IR - OK
W220:EIS/EZS A215.545.00.08 - MCU 1D69J read PSW IR - not successfulW639: EIS/EZS A639.545.05.08 - MCU 2x 1L02Y - read PSW IR - not successful
W639: EIS/EZS A639.545.09.08 - MCU 0L01Y - read PSW IR/OBD - not successful
I Can guarantee it will not read ANY WITH HC05
1D69J/0D69J cannot be read by IR alone - A calculation with kline is possible.
read a w203 A203.545.05.08 with mask 1J35d password ok
W203 IES 203 545 05 08 read PSW IR OK
W 220 IES 215 545 02 08 read PSW IR – OK

Only support parts of HC05, HC08 motorola eis(K line),if cannot support will show error, need to remove eis get eeprom. we have tested W215 ok, but not
means all W215 can support.in fact only support parts of this type.


please refer to change W204 esl steps:
ESL:Clear TP, Renew ESL(need erase password)
EIS:Renew EIS(need password & erase password)
Write EIS data back,then Personalize W204ESL


 vvdi-mb-bga-tool
vvdi-mb-tool
vvdi-mb-tool
